ATI AT6000 Signature Series Amplifiers
2 to 7 Channels - 300 Watts/Channel
Amplifier Technologies, Inc., the prolific manufacturer of many of the high end's best amplifiers today introduced a new series of amplifiers designed by their president and chief engineer, Morris Kessler. The AT6000 series amplifiers, available with 2 to 7 channels, are the company's first new amplifiers in over a decade. Furthermore, their "signature series" designation with a facsimile of Kessler's signature on the main panel acknowledges the special nature of these designs.
All the amplifiers in the AT6000 series are rated at 300 Watts RMS/channel into 8 ohms from 20Hz to 20kHz with no more than 0.03% THD with all channels driven and 450 Watts RMS at 4 ohms under the same conditions. Signal-to-noise ratio is typically 128 dB referenced to full output so each amplifier in the series is capable of playing back the full dynamic range available on today's lossless recordings. The AT6000 is available in 2 to 7 channel configurations and is upgradeable by adding 300 Watt power modules. Each model comes standard with 2 massive toroidal transformers with quick connect plugs.
Beyond Kessler's personal identification, these amplifiers are new in more significant ways:
- As in Kessler's previous top-of-the-line designs, these amplifiers are fully balanced, differential amps, but unlike his earlier balanced designs which were essentially balanced bridged amplifiers, the 6000 series uses only a single input stage with dual-differential output stages. The reason: the advantages of balanced designs are retained and noise is reduced by 50%.
- The design uses current feedback instead of the more common voltage feedback. The reason: current feedback amplifiers are faster with virtually unlmited slew rate and are better able to reproduce today's best music and film.
- Kessler used Thermaltrak output devices for the 6000 series. Unlike traditional designs where external diodes attached to the heat sinks track the amplifiers operating conditions and use the details to adjust bias, Thermaltrak devices have the diodes in the same package as the transistors. The results: bias is optimized in real-time.
- The 6000 series use dual DC servos to track and maintain DC offset. The result: DC in the amplifier's output is reduced to insignificant levels.
- These amplifiers use a revised PCB layout. They are still modular with the complete amplifier including the power supply parts on a single card, but now the AC components are on one edge of the board and away from the signal input. The result: improved signal-to-noise performance.

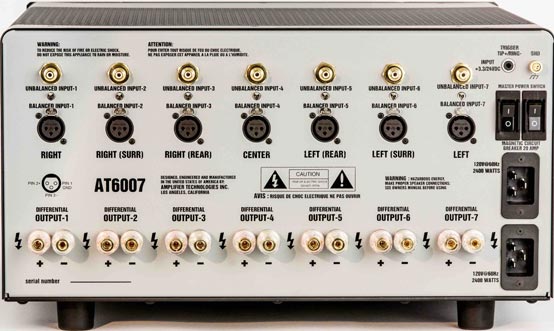

- All of the amplifiers in the series use dual toroidal transformers, dual power switches and dual line cords. The results: the AT6002 is now a complete dual-mono design and the ampflifiers with many channels, as in the 7-channel AT6007, can be hooked-up to two independent 20 amp circuits for greater sustained output power than is possible from a single AC circuit.
See below for additional features common to all ATI AT6000 models:
- Remote Trigger:
- Activated from 3.3VDC to 24 VDC via a heavy-duty relay.
- Protection Circuits:
- Optically coupled with full automatic reset.
- Toroid Transformers:
- 40% more efficient than EI type. Separate bi-filar windings for each channel guaranty lower noise and crosstalk.
- Circuit Boards:
- Double-sided, FR-4 glass-epoxy, computer-grade boards are assembled in-house.
- Soft Start Circuitry:
- Ultra soft turn on reduces in-rush current to a minimum. Multiple units can be turned on without tripping circuit breakers eliminating the need for sequencing.
- Power Transistors:
- High-current, bi-polar output transistors with active bias circuits result in effortless operation.
- Thermaltrak Output Devices:
- Thermaltrak devices have tracking diodes in the same package as the transistors so bias is optimized in real-time.
- Power Cord:
- Dual Detachable, 3-wire cord.
- 7 Year Warranty:
- Parts and labor against defects in parts or workmanship.
- 17.25"w X 9.5"h X 18.5"d (chassis)
- 88 to 138 lbs (model dependent)
ATI AT6002 amp - 2 channel amplifier, 300 watts/channel
ATI AT6003 amp - 3 channel amplifier, 300 watts/channel
ATI AT6004 amp - 4 channel amplifier, 300 watts/channel
ATI AT6005 amp - 5 channel amplifier, 300 watts/channel
ATI AT6006 amp - 6 channel amplifier, 300 watts/channel
ATI AT6007 amp - 7 channel amplifier, 300 watts/channel
Models may be upgraded to a maximum of 7 channels, by having additional amplifier modules installed within the unit.
Made In The U.S.A.
The U.S. has always led the world in power amplifier technology, and still does. All ATI products are manufactured in Southern California in a modern 50,000 square-foot facility to exacting design specifications and rigid quality control. ATI manufactures all toroid transformers and assembles all circuit boards in-house. We use computerized Audio Precision test equipment to test each stand-alone amplifier module (DMC2) as well as the completed unit. This control and scrutiny of every phase of manufacturing guarantees unit-to-unit repeatability and a lifetime of accurate sound reproduction.
