ati amplifier technologies inc
"ATI amplifiers are our specialty and the only products we carry"

ATI AT3005 Amplifier

5 Channels - 300 Watts/Channel

ATI's "Pure Balance"® technology introduces a range of models that feature true differential design; balanced from input to output. This design allows the quietest and purest reproduction of the audio signal. Power output for the ATI AT3005 amp and the entire AT3000 amplifier series is 300 Watts RMS/channel into 8 ohms from 20Hz to 20kHz with no more than 0.03% THD and I.M. distortion. The AT3000 is available in 2 to 7 channel configurations and is upgradeable by adding 300 Watt power modules. The ATI AT 3005 amplifier comes equipped with two massive toroidal transformers making upgradeability easy via the addition of a plug-in module. Other features making the ATI AT 3005 amp installer-friendly are: a detachable IEC power cord, optically coupled protection circuits, soft-start circuit and convection cooling eliminating the need for fans.

ati at3005 front audio power amplifier
ati at3005 front2 audio power amplifier
ati at3005 rear audio power amplifier

See below for additional features common to all ATI models:

Remote Trigger:
Activated from 3.3VDC to 24 VDC via a heavy-duty relay.
Protection Circuits:
Optically coupled with full automatic reset.
Toroid Transformers:
40% more efficient than EI type. Separate bi-filar windings for each channel guaranty lower noise and crosstalk.
Circuit Boards:
Double-sided, FR-4 glass-epoxy, computer-grade boards are assembled in-house.
Soft Start Circuitry:
Ultra soft turn on reduces in-rush current to a minimum. Multiple units can be turned on without tripping circuit breakers eliminating the need for sequencing.
Power Transistors:
High-current, bi-polar output transistors with active bias circuits result in effortless operation.
Power Cord:
Detachable, 3-wire cord, 20 amp circuit.
7 Year Warranty:
Parts and labor against defects in parts or workmanship.
Dimensions:
17"w X 8.75"h X 18"d (chassis)
Weight:
56 to 106lbs (model dependent)

Models:

AT3002 - 2 channels, 300 watts/channel
AT3003 - 3 channels, 300 watts/channel
AT3004 - 4 channels, 300 watts/channel
AT3005 - 5 channels, 300 watts/channel
AT3006 - 6 channels, 300 watts/channel
AT3007 - 7 channels, 300 watts/channel

Models may be upgraded to a maximum of 7 channels, by having additional amplifier modules installed within the unit.

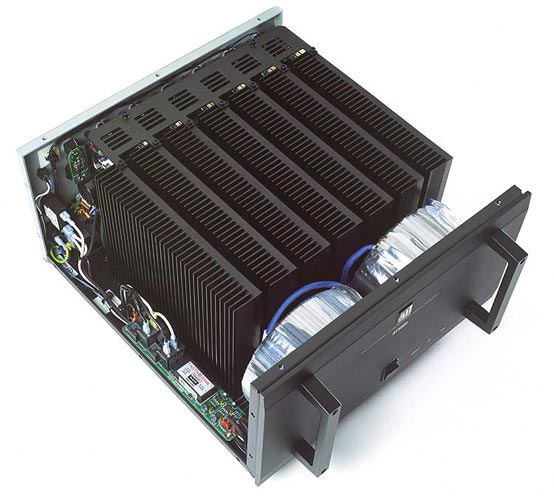

ati at3002 interior audio power amplifier

Made In The U.S.A.

The U.S. has always led the world in power amplifier technology, and still does. All ATI products are manufactured in Southern California in a modern 50,000 square-foot facility to exacting design specifications and rigid quality control. ATI manufactures all toroid transformers and assembles all circuit boards in-house. We use computerized Audio Precision test equipment to test each stand-alone amplifier module (DMC2) as well as the completed unit. This control and scrutiny of every phase of manufacturing guarantees unit-to-unit repeatability and a lifetime of accurate sound reproduction.
